The Digital Drawings Style System is a complete, studio-grade template designed exclusively for Rayon Design — built to give your drawings the same elegance, order, and visual identity found in top-tier interior design studios.
This isn’t just a library of symbols.
It’s a full drawing language, crafted to make every floor plan, layout, and technical document look clean, intentional, and immediately recognisable as your work.
Every element — from line weights to materials, from herringbone patterns to lighting symbols — has been carefully designed to remove inconsistency, speed up your workflow, and elevate the quality of your presentations.
With cohesive styles for walls, openings, dimensions, patterns, colours, electrical symbols, fixtures, and more, this system ensures that every drawing you produce feels part of a refined, unified visual world… whether it’s your first project or your fiftieth.
It clarifies your drawings, It strengthens your brand, It saves you hours. And it brings the calm, structured precision your clients instantly recognise as professional.
This template handles the technical details — so you can focus on design, storytelling, and creating work that truly stands apart.

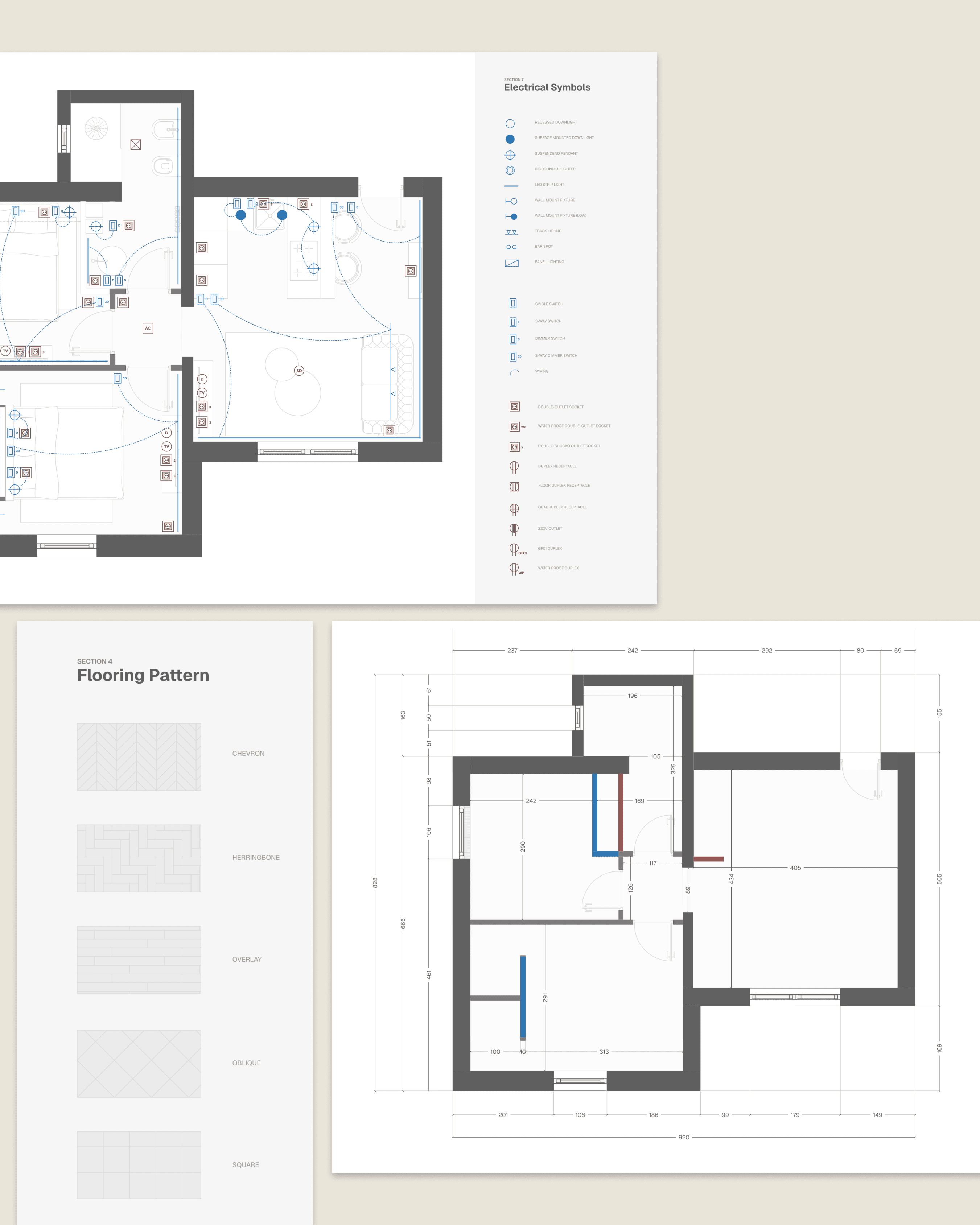

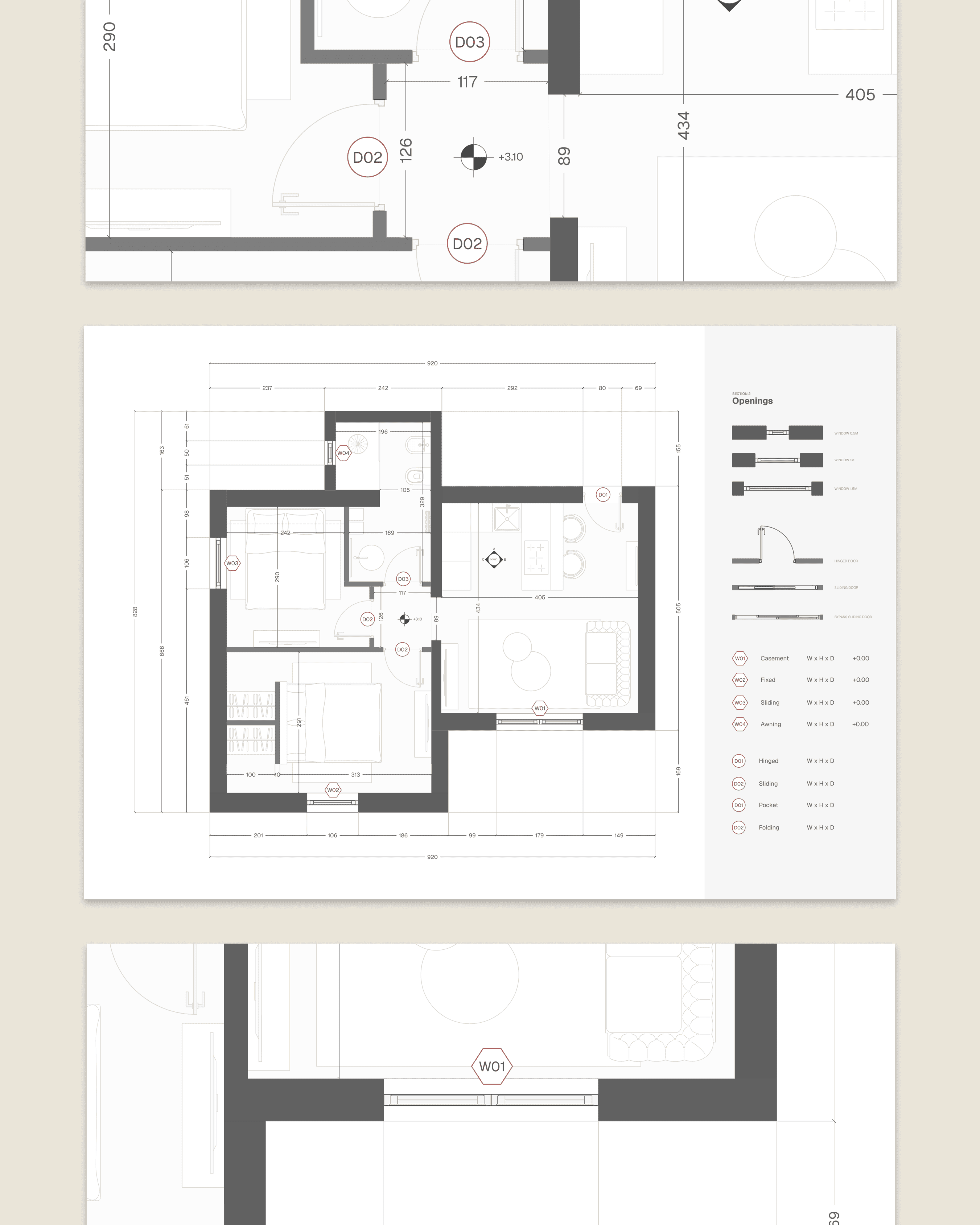

THE DRAWINGS THAT DEFINE YOUR STYLE
BRING ARCHITECTURAL CLARITY TO EVERY PROJECT.

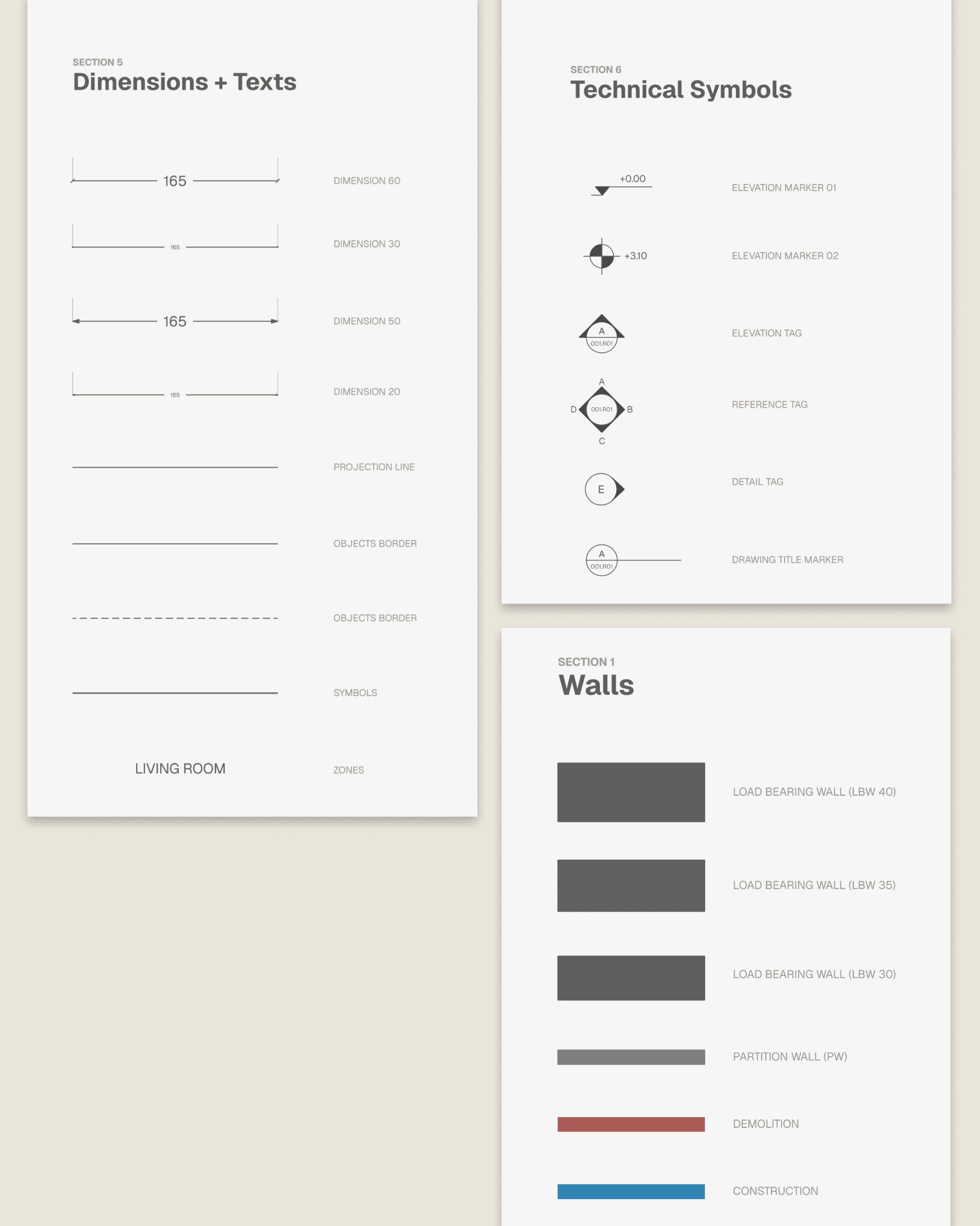

✔ UNIFIED VISUAL LANGUAGE — Line weights, symbols, colours, and patterns that make every drawing feel coherent, elegant, and unmistakably yours.

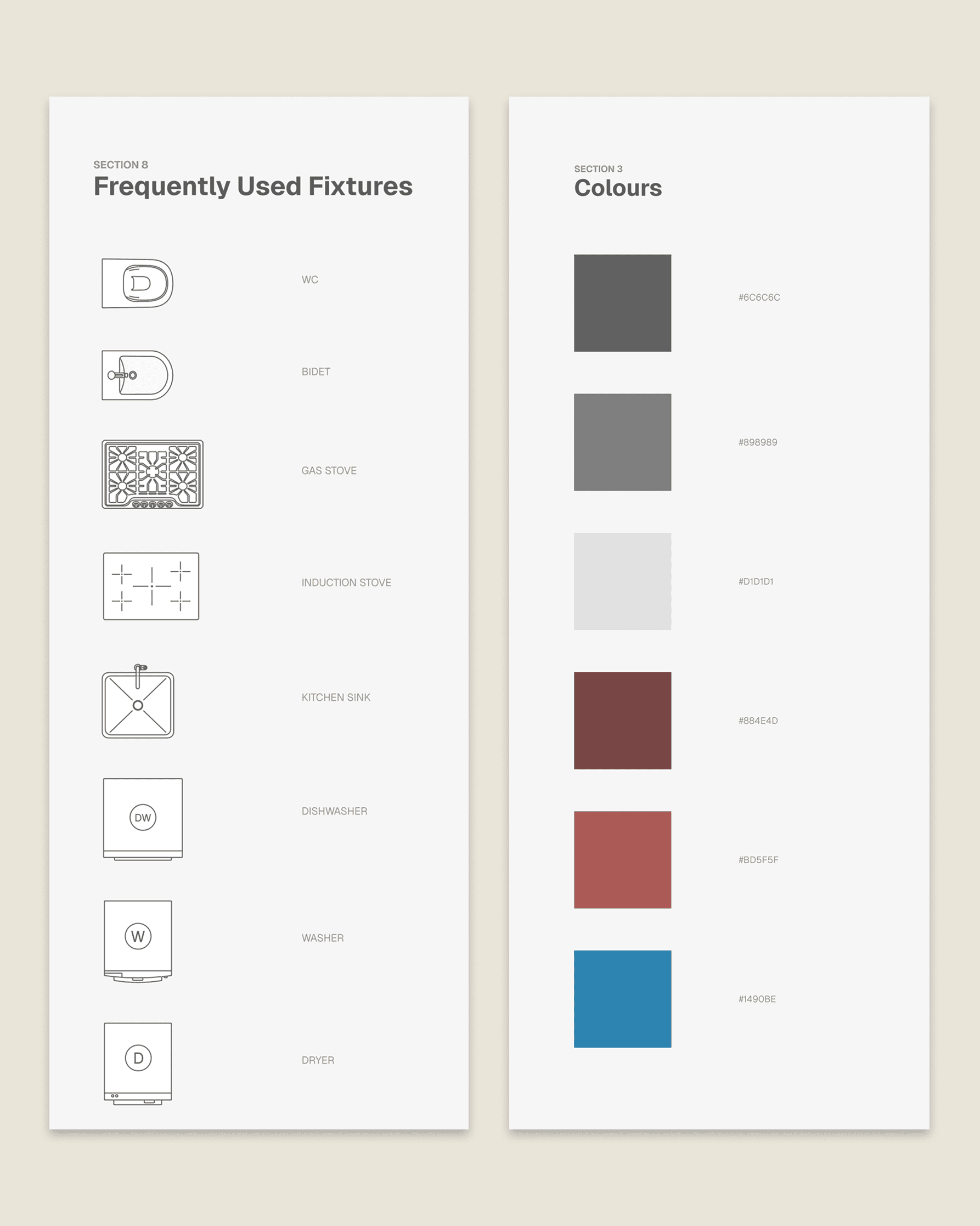

✔ EFFORTLESS PRECISION — Pre-built styles for walls, openings, fixtures, dimensions, materials, and patterns that keep your layouts clean and architecturally correct.
✔ PREMIUM DESIGN AESTHETICS — A system shaped around real interior workflows, where clarity meets beauty and every detail feels intentional.
✔ CONSISTENT RESULTS, EVERY TIME — Whether you design one room or a full renovation, your drawings always speak with the same refined rhythm.

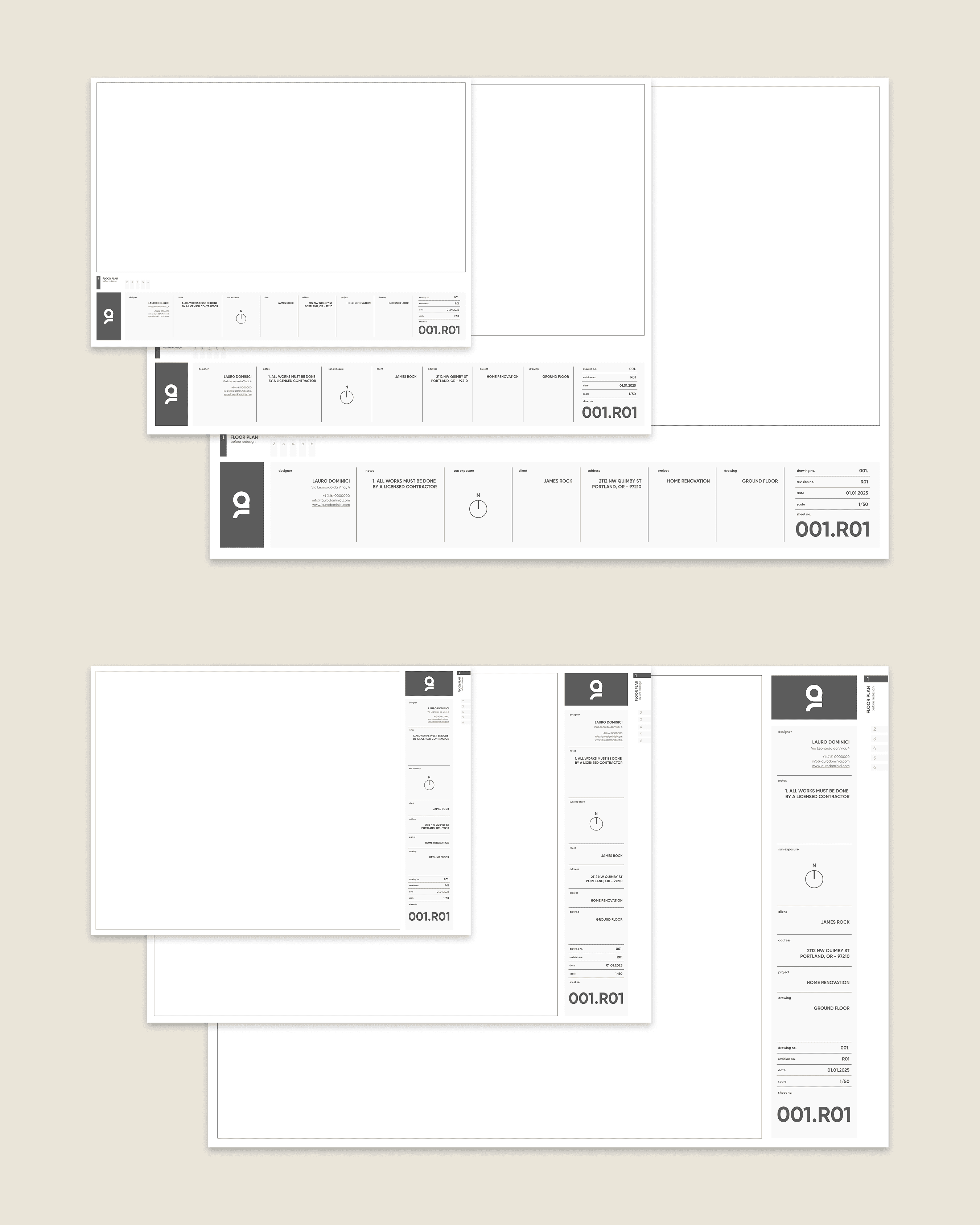

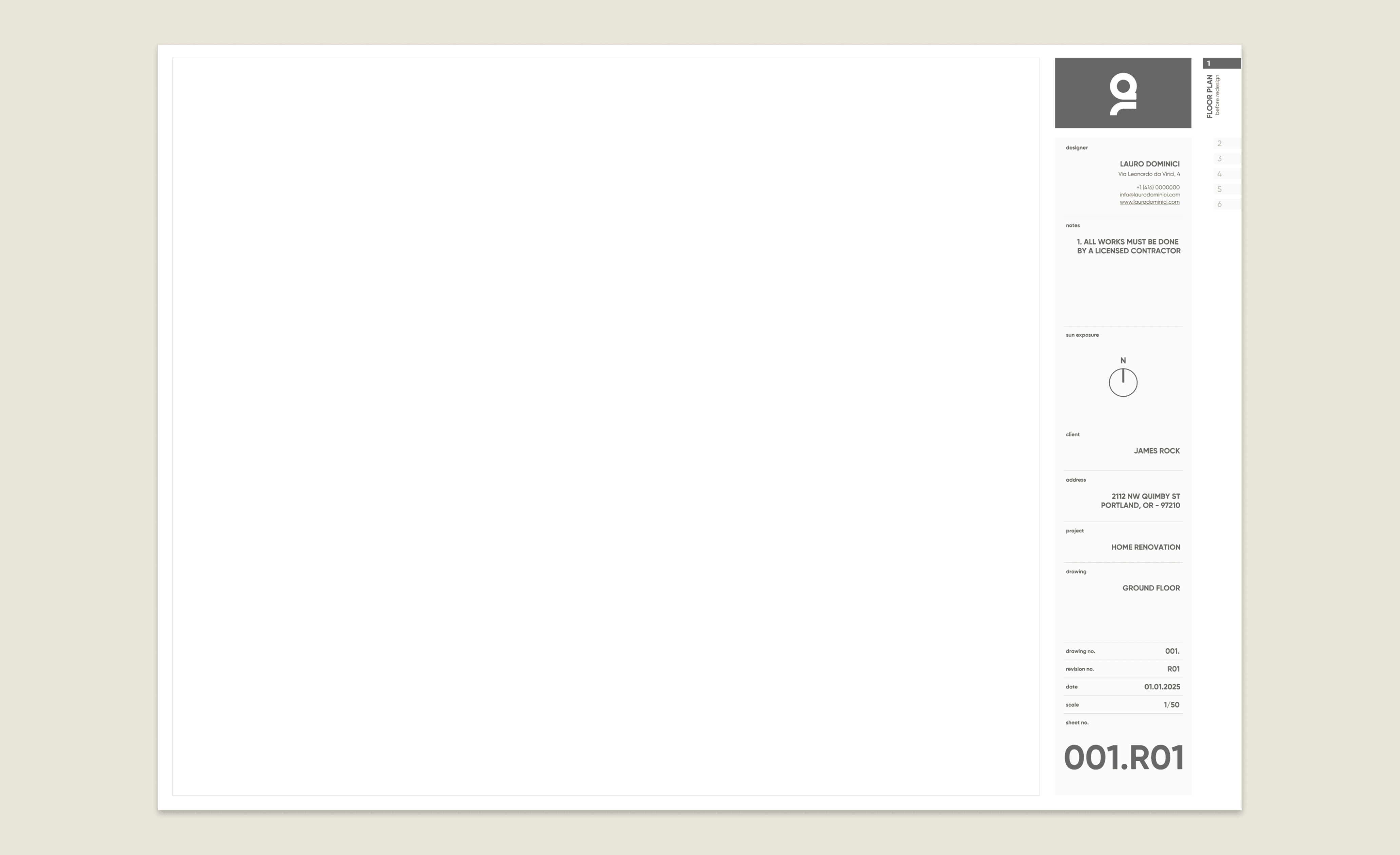

THE TITLE BLOCKS THAT COMPLETE YOUR PRESENTATION.
✔ RIGHT & BOTTOM-JUSTIFIED VARIATIONS — Clean, modern compositions that adapt beautifully to any project, presentation, or client format.
✔ ISO COLLECTION (A1, A2, A3) — Minimal, balanced layouts crafted for European workflows, ensuring perfect readability and harmony.
✔ ARCH COLLECTION (B, C, D FORMATS) — Professional sheet sizes used in North American standards, ideal for international teams or collaborative work.
✔ PRE-SET METRIC & IMPERIAL SCALES — From 1:50 to 1:100, and ¼″ = 1′–0″ to ⅛″ = 1′–0″ — every scale rendered with clarity and elegance, ready to place with one click.
A GLIMPSE INTO YOUR FUTURE TEMPLATE

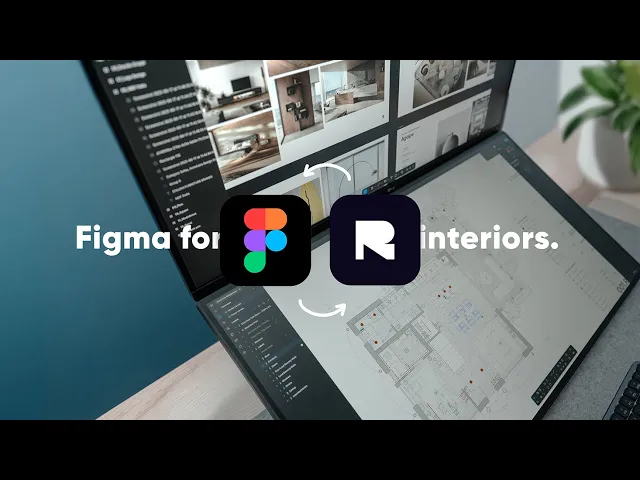

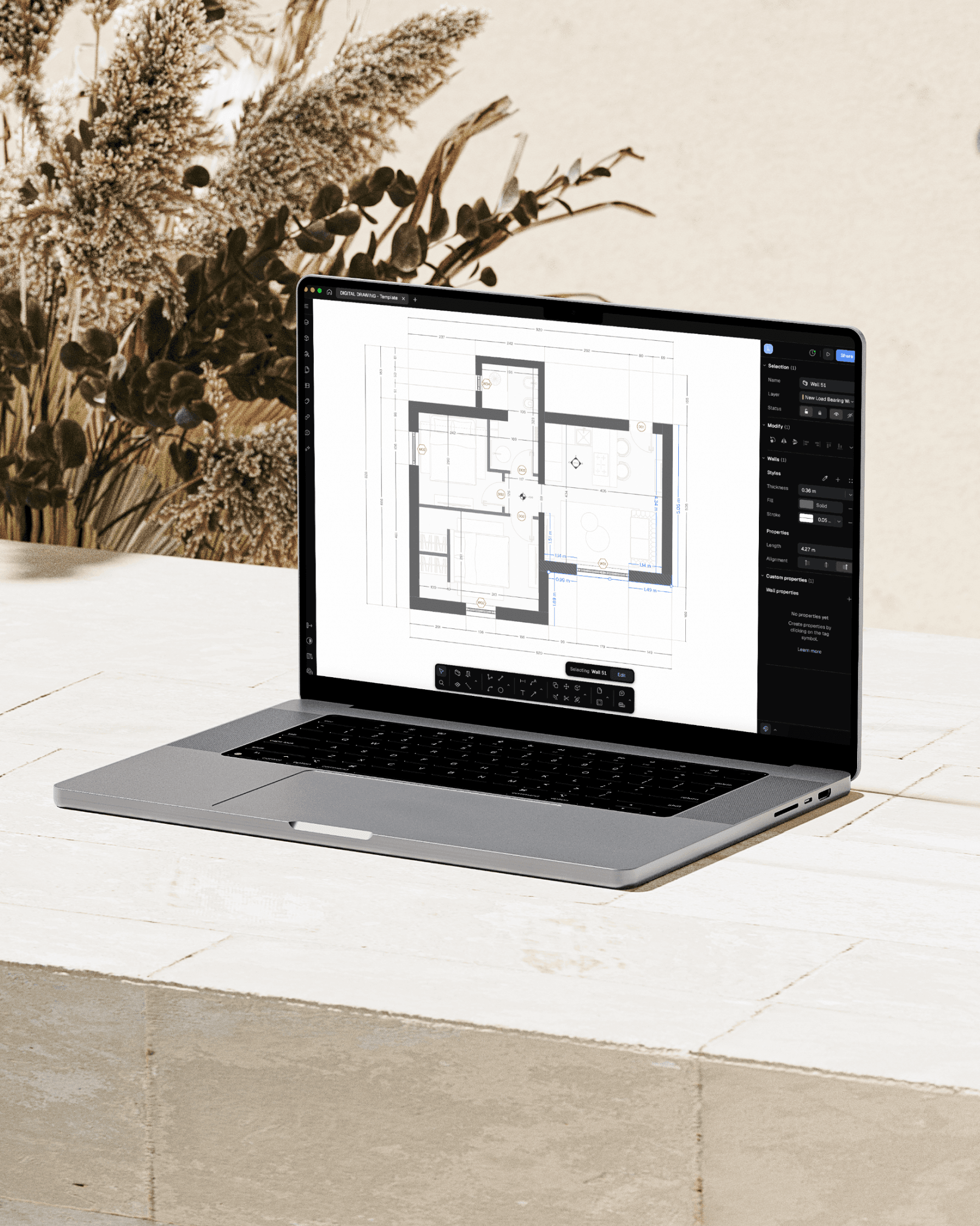

BUILT IN RAYON DESIGN, MADE FOR PRECISION

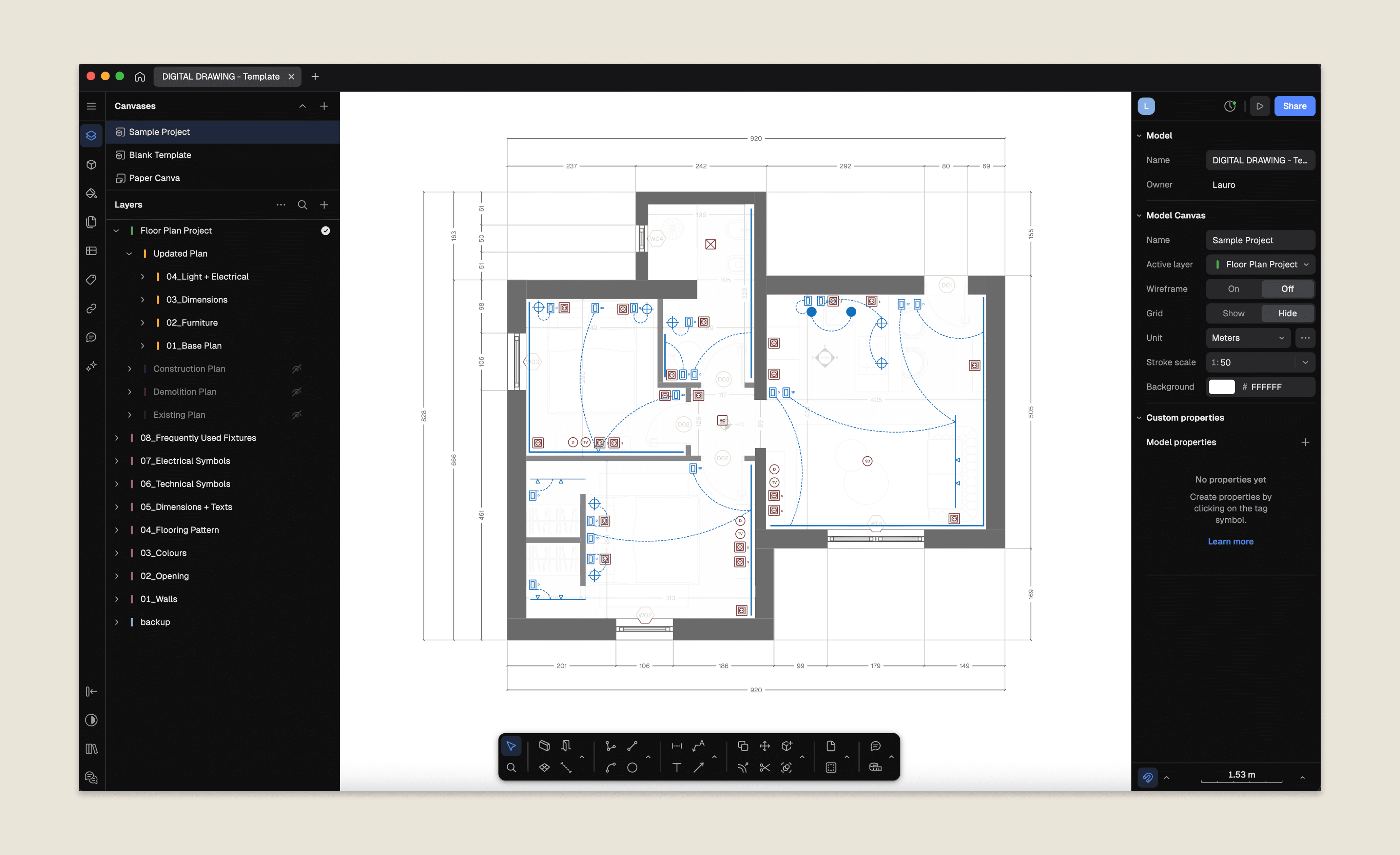

All styles, symbols, and layouts are designed natively inside Rayon Design — so every element behaves exactly as it should in a professional drafting environment. Nothing to install, nothing to configure. You open the file… and your entire drawing system is ready. Rayon keeps everything aligned in real time, letting you design, collaborate, and refine your plans with a clarity and fluidity traditional CAD tools simply cannot match.
✔ EDIT LIVE IN YOUR BROWSER — Every line, style, and symbol updates instantly, keeping your drawings clean and consistent as your project evolves.
✔ COLLABORATE IN REAL TIME — Share a single link with clients, contractors, or teammates and work together inside the same live file — no exports, no versions, no confusion.
✔ CUSTOMISE EVERY STYLE — Adjust colours, thicknesses, labels, patterns, and symbols to match your studio identity with precision and ease.
✔ EXPORT WHEN YOU NEED IT — Seamlessly download your drawings as DWG for collaboration with architects, contractors, or engineers who use traditional CAD.
✔ REUSE & ITERATE FOREVER — Duplicate sections, adapt layouts, and build a library of project-ready elements without starting from zero each time.
WHO IS THIS FOR
Learn how professionals think, structure, and present real design projects — and turn your portfolio into your first career opportunity.
Present your ideas with clarity and confidence through a refined, ready-to-use system that elevates every client meeting.
Transform your concepts into a cohesive visual story that clients instantly understand — from sketches to final renderings.
Streamline your workflow with a consistent, polished template that saves time while maintaining your studio’s unique identity.
